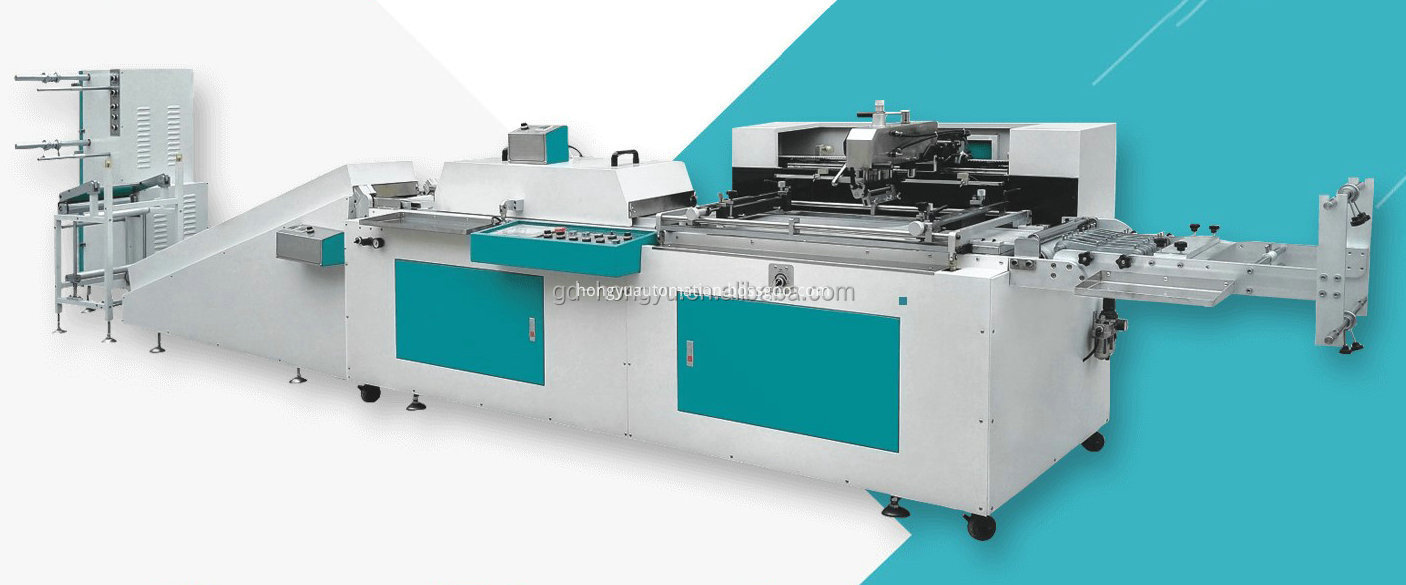

Automatic Textile Satin ribbon Label screen printer

  • Automatic Textile Satin ribbon Label screen printer
  • Automatic Textile Satin ribbon Label screen printer
  • Automatic Textile Satin ribbon Label screen printer
  • Automatic Textile Satin ribbon Label screen printer

Automatic Textile Satin ribbon Label screen printer

    Packaging: WOODEN CASE
    Productivity: 20
    Brand: HONGYU
    Transportation: Ocean
    Place of Origin: CHINA
    Supply Ability: 20
    Certificate: CE
    Port: SHENZHEN,GUANGZHOU

Basic Info

Model No.: NG100D

Product Description

Automatic narrow goods screen Printing Machine


Apply to label ribbon,elastic tape,film,organza,slice,hat brim tape;Good at double sides precise printing, black material with white letter, pomp,round tape,cotton tape and film etc;



Specification
Precise printing 1.powered by full automatic Servo Motor with a Ball-Screw-Assemblies instead of air pressure. 2.Adjusting printing position by Auto Sensors system instead of handcraft. 3.3. Tension controller and the brake make the conveying exactly Functions 1.Muti-color printing, colors: This model has 1c,2c,3c,4c. 2.Over printing for more colors, it can print 5C~8C too 3.Both sides printing several trips at one time 4.Silence printing 5.Micro adjusting meter for frame adjusting automatically. 6.Anti-wind device makes the ribbon pulled into dryer after printing. 7.Infrared dryer and heater make the any kinds ink dry enough. 8.Free set up the printing times and the carry times on electronic touch screen. 9.Several sensors tracing the situation of the feeding materials. 10.Dryer lift while the machine stopping 11.Most core parts import from Europe&Japan. Good after service,guarantee time 12 months,and we have professional engineers to install the machine for you and train.Your staffs until they master the machine. All of this is free.
NG100D
NG3032
NG3033
NG3034
Print area
30*70CM
30*70CM
30*70CM
30*70CM
Print color
1
2
3
4
Print speed
750M/H
750M/H
720M/H
720M/H
Max power
8KW/70A/380V
16KW/70A/380V
22KW/70A/380V
25KW/70A/380V
LWH
7.5*1.2*1.5M
9*1.2*1.5M
12*1.2*1.5M
15*1.2*1.5M
KG
1000KG
1500KG
2000KG
2500KG
Manufacturing Technique

1.Main feature High precision printing and high stability

a.The printing function is also printed on both the front and the back to ensure accurate double-sided correspondence, and the precision industry is the first.Quasi! Quasi! Quasi! b.Cutting print function; c.Suitable for a variety of package materials, special materials and special processes.Such as various types of film, brim belt, snow yarn belt, round rope belt, foaming effect, etc., white background on black background is good; d.The drying effect is the first in the industry.The oven is long, the infrared lamp tube, the imported heating core and the heating plate are integrated, and the thick plate effect is good; e.Free addition and subtraction of the nose.That is, the two-color machine can be installed as a three-, four-, and five-color machine.a.Nearly 20 years of experience, the performance is mature and stable; b.Servo strapping system, high printing accuracy; c.Electric eye tracking and positioning system, tracking point printing, accurate error correction; d.The tension control system ensures the tension balance of different materials, and advances evenly during printing to match the color; e.The head drive is driven by one set of servos per color, and the high-precision operation is more stable; f.All imported electrical appliances are installed to ensure high performance and high stability of the machine; g.The program system is stable and mature.

2.Powerful

a.The printing function is also printed on both the front and the back to ensure accurate double-sided correspondence, and the precision industry is the first.Quasi! Quasi! Quasi! b.Cutting print function; c.Suitable for a variety of package materials, special materials and special processes.Such as various types of film, brim belt, snow yarn belt, round rope belt, foaming effect, etc., white background on black background is good; d.The drying effect is the first in the industry.The oven is long, the infrared lamp tube, the imported heating core and the heating plate are integrated, and the thick plate effect is good; e.Free addition and subtraction of the nose.That is, the two-color machine can be installed as a three-, four-, and five-color machine.

3.Easy to operate

a.The frame is precisely adjusted and positioned, high precision and easy to operate; b.The net frame is freely lifted and lowered, which is convenient for operation and wiping the net to wash the net; c.The screen can be precisely fine-tuned during the printing process without downtime;
Details Images

Roll To Roll Device

Easy fix up roll to roll device.
Can print 1-10 lanyards goods at one time (Max 30CM)
Servo tension control make sure high quality printing;

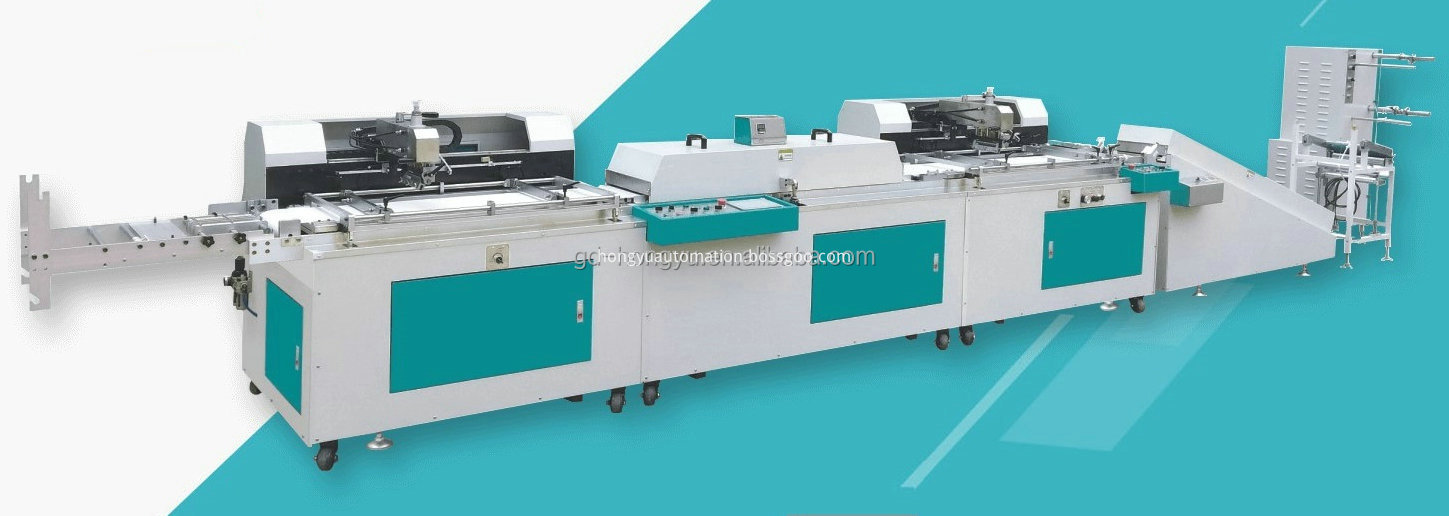

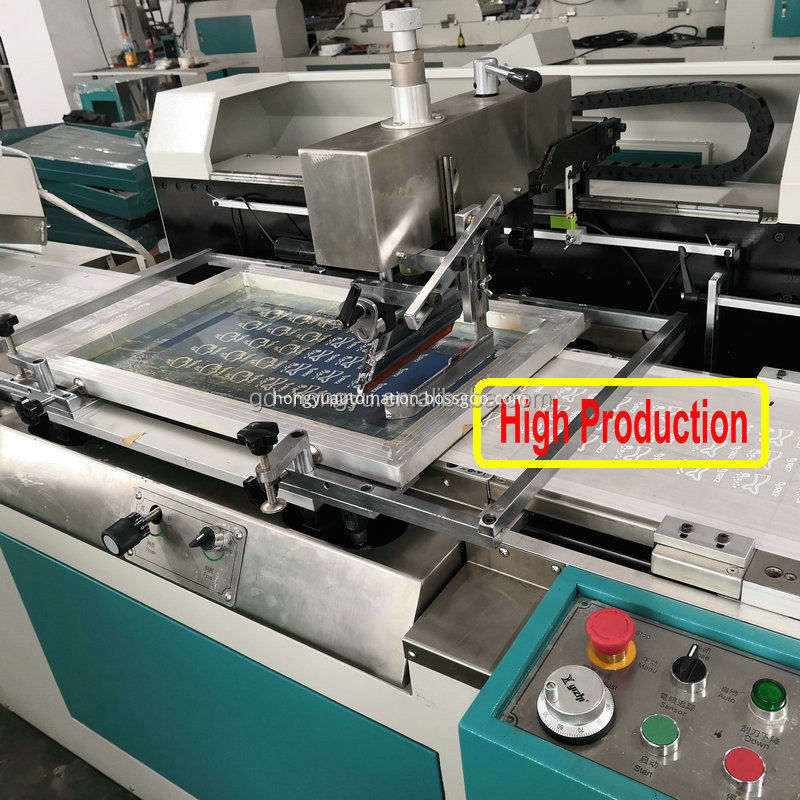

High Production
You can print up to 30CM width with 1-10 pieces together;
Depends on the quality you need, you can print 1-10 times on one side;
High accuracy printing head runs on Bilinear linear guide rail;
Easy to use pressure systerm;

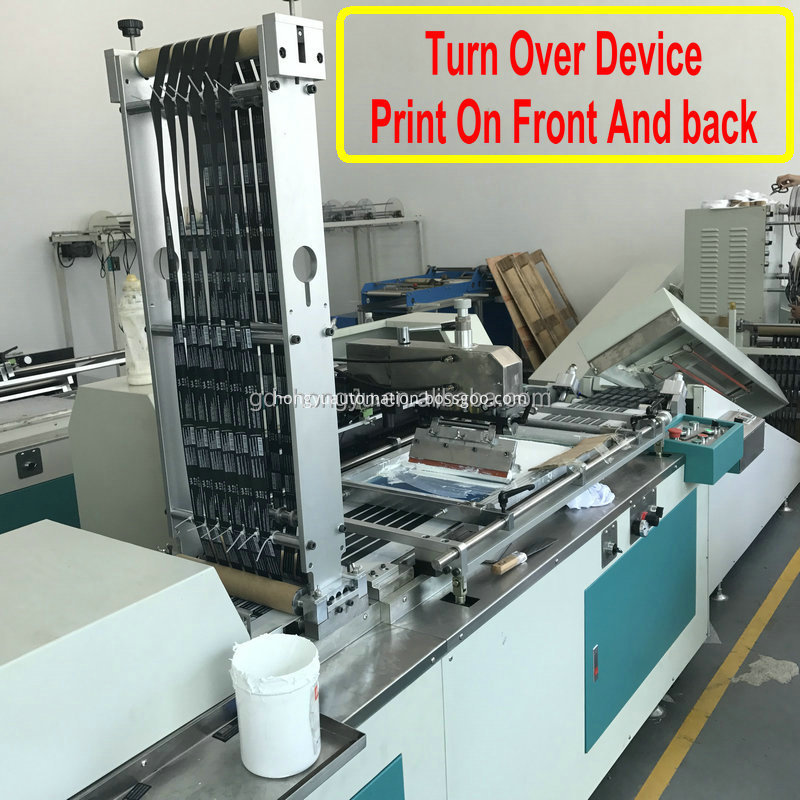

Turn over Device
You can use this device to turn over the products to print on the other side;
Need 2 print head machine(2 color machine), 1 print on the front side, the other print on the back side;

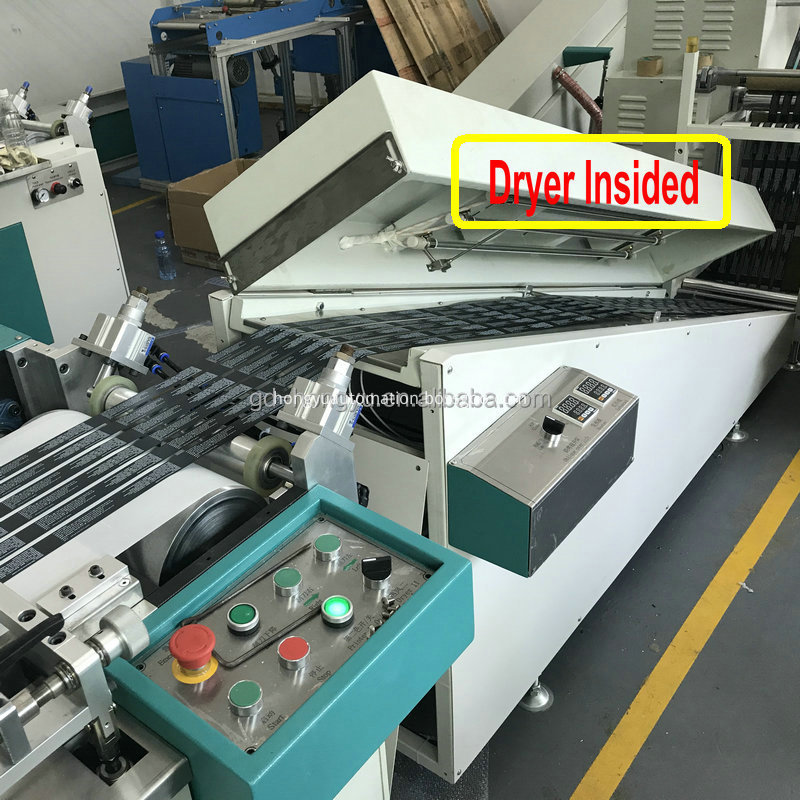

Dryer insided
After printing, the dry will dry the ink immediately;
Depends on different product, we can changed the IR to meed different printing quality;

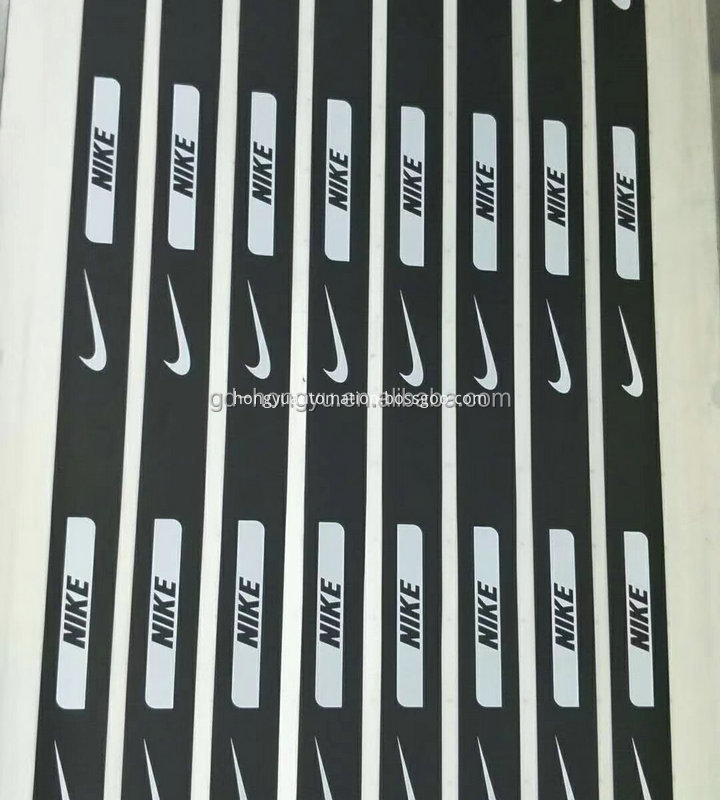

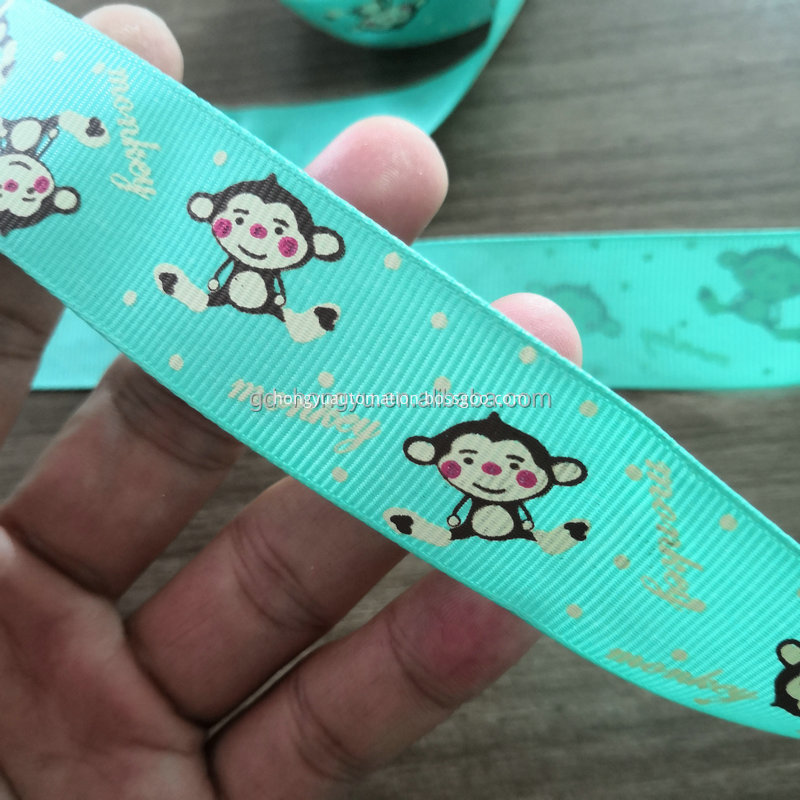

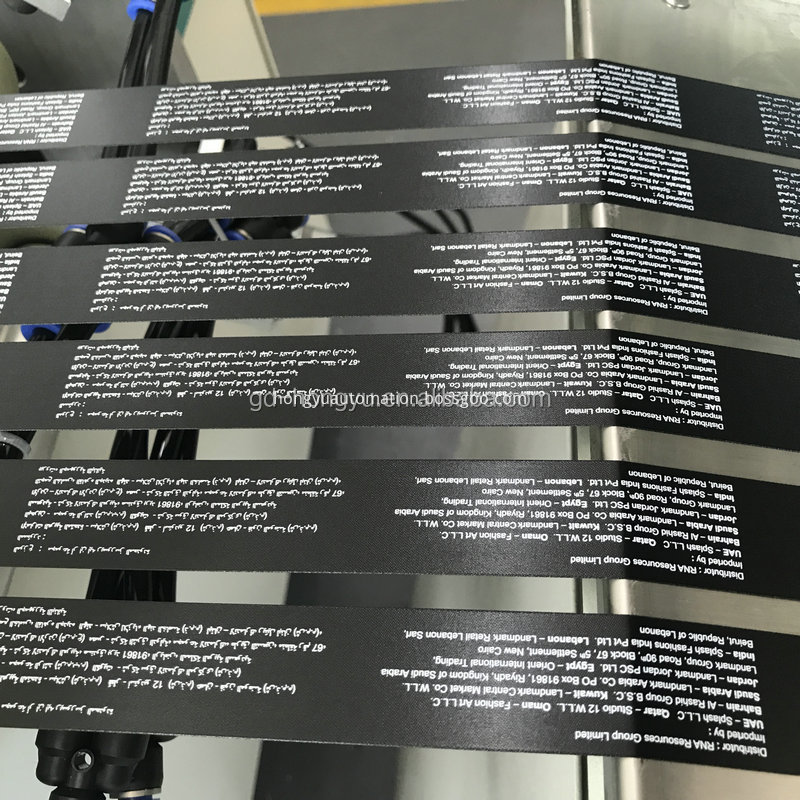

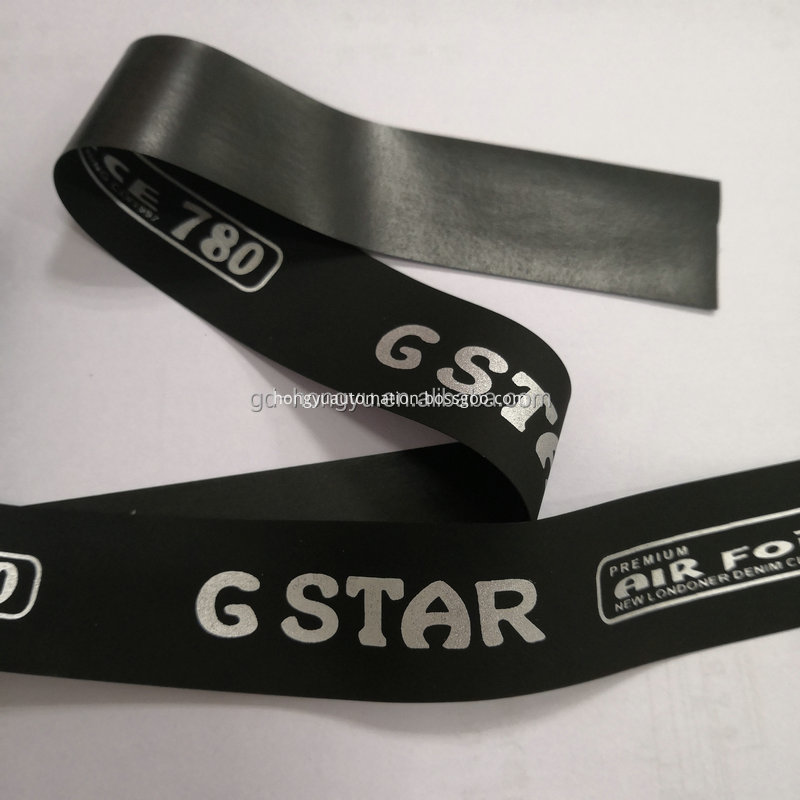

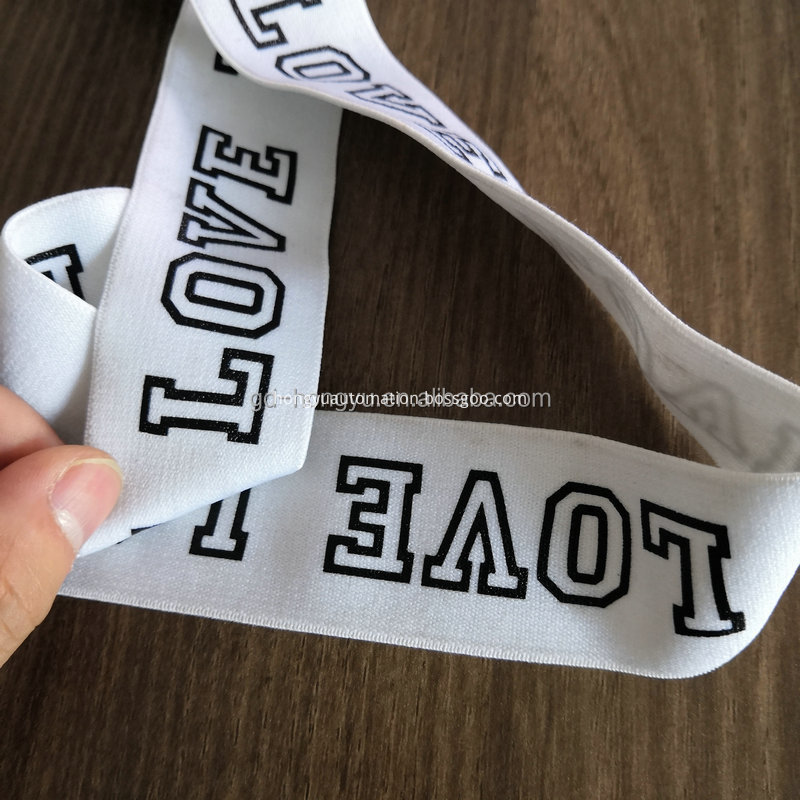

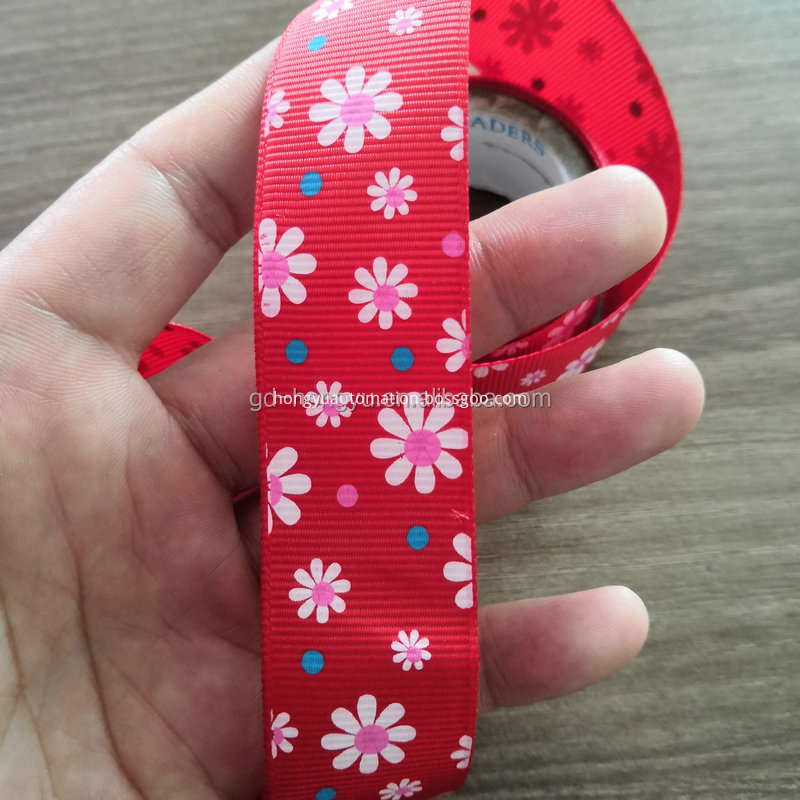

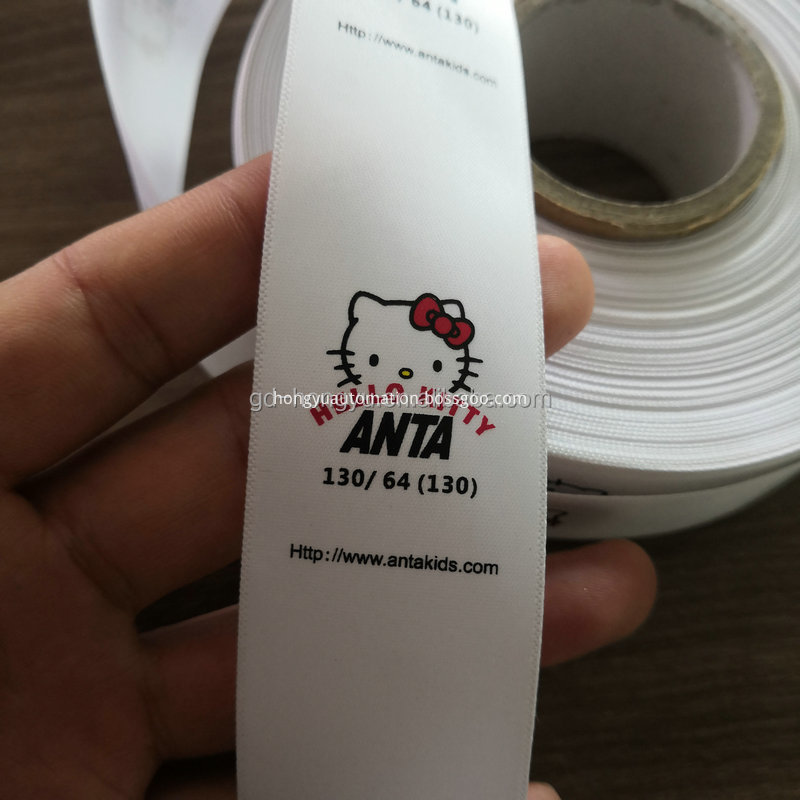

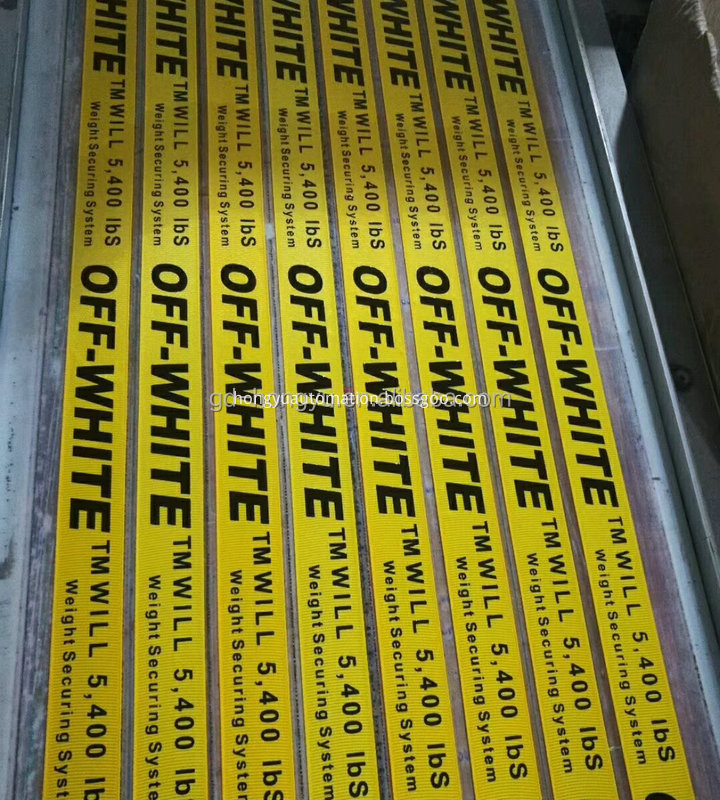

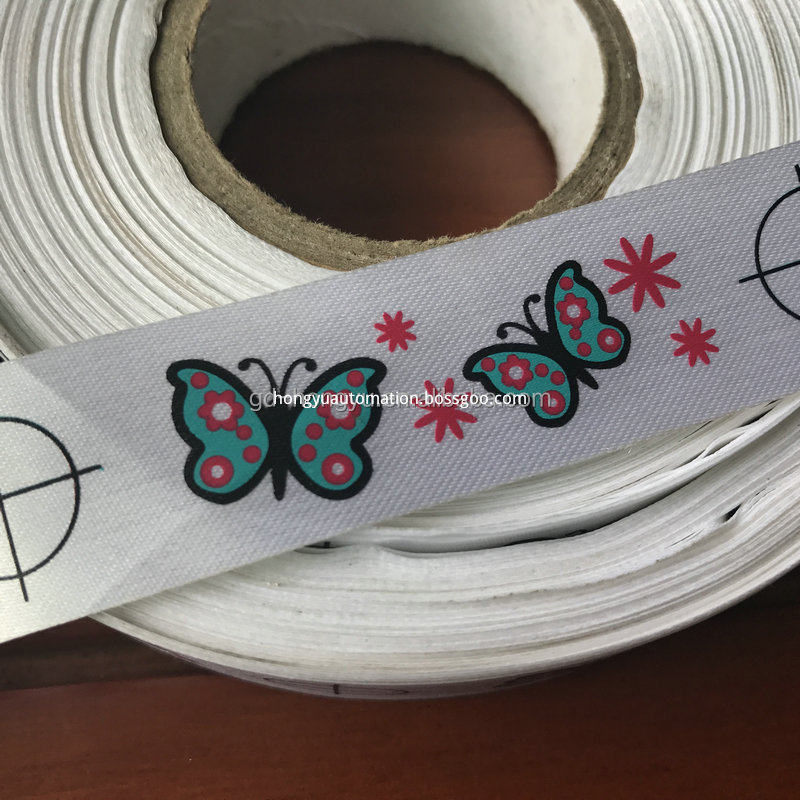

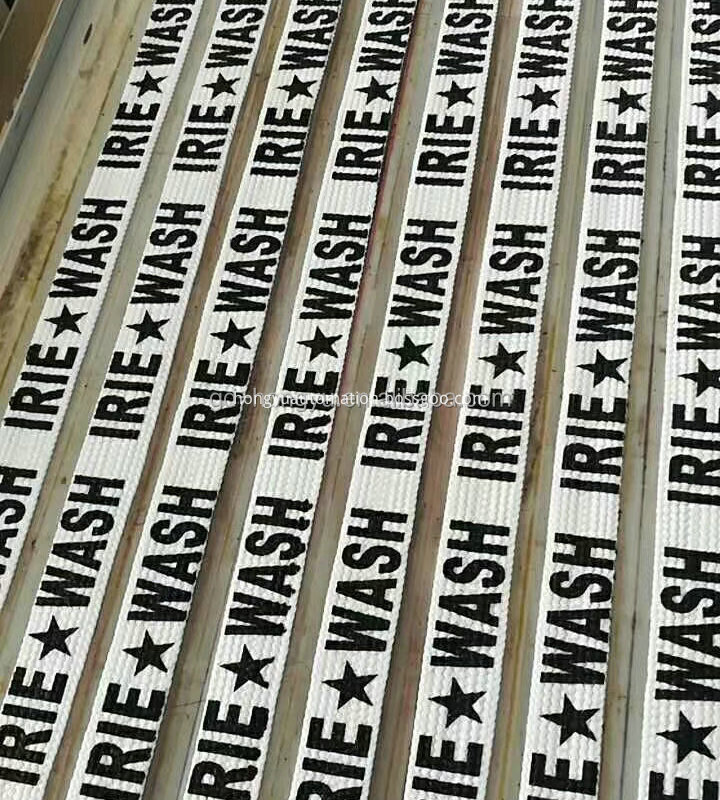

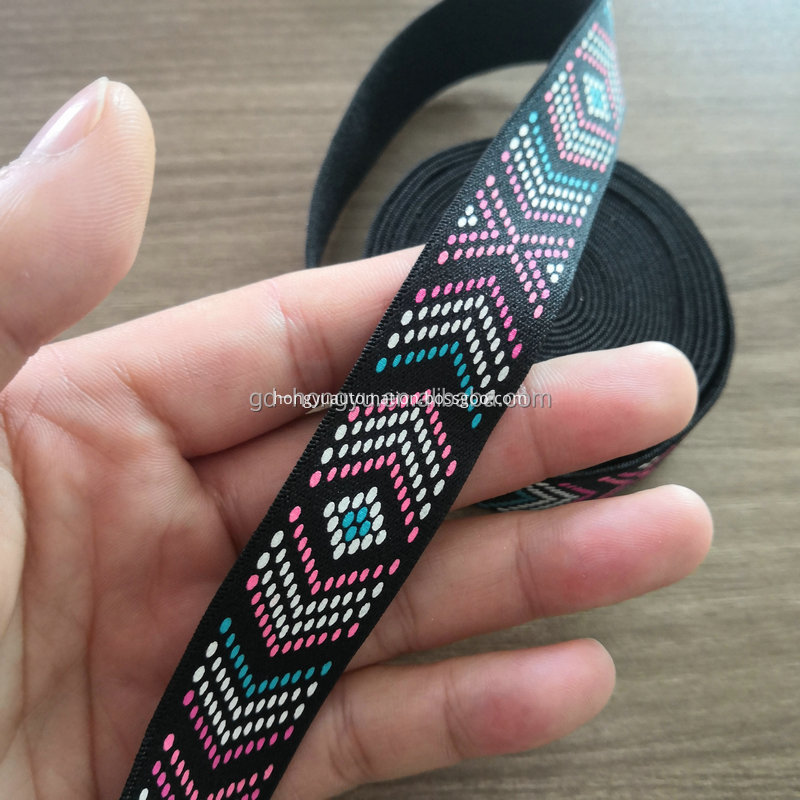

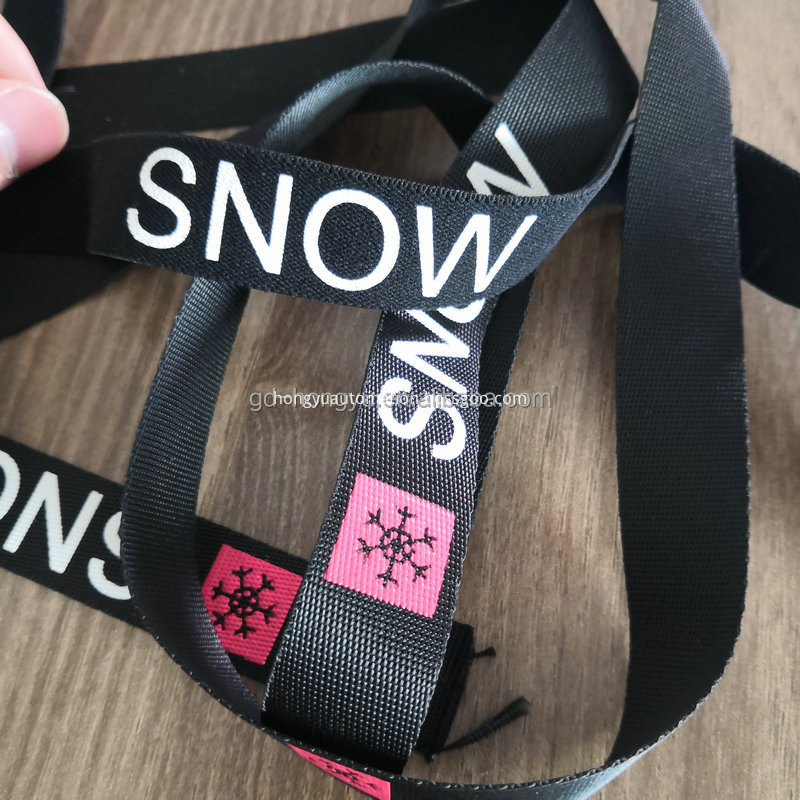

Printed samples
